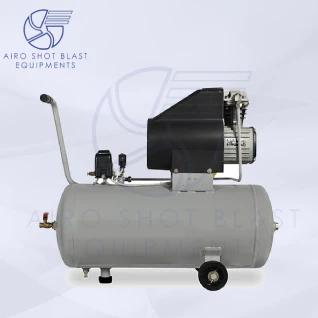

Air Compressor

Air Compressor Specification

Introduction of Sand Blasting Air Compressor

The air compressor is the central & most significant element of the sand blasting machine. Sand blasting is the process of cleaning steel, wood, and other elements accompanied by a stream of sand, additionally engraving with sand under pressure on glass & the soda blasting method, which is cleaning under pressure accompanied by baking soda (Sodium Bicarbonate) NaHCO3. These are just a few examples of sand blasting cabinet technology applications.

Abrasive is employed to clear dirt (sand blasting, soda blasting, shot blasting machine) & is hurled accompanied by compressed air to release rust, tarnish, grease, & different contaminants certain standard techniques of air cleaning, like water & chemicals, can't remove.

Air compressor effects heightened pressure air for the blasting process. This machine endures in ambient air at 14.7 psi & compresses it to a pressure many times higher, frequently around 120 psi. An air intercooler allows to disassembly of parts of the warmth assembled during compression. As the air leaves the compressor, it traverses via moisture & oil divisions to assure the individual it is dry & complimentary of oil.

Air compressors are usually designated by their outcome capacity, like 250, 325, & 750 CFM. CFM stands for cubic feet per minute, whichever is how volume of pressured air is measured. Compressors are usually powered by an interior combustion engine (gasoline & diesel) & an electric motor. The region wherever blasting will take place, additionally availability of utilities, are usually employed to choose the best power unit.

An abrasive blasting machine is a technique wherever different media is shot against an exterior to alter its texture. Abrasive blasting may roughen & smooth an exterior and additionally release pollution. The abrasive media in this employment are generally carried by compressed air, so determining a compressor certain will furnish acceptable airflow is critical.

Air pressure is not as consequential as volume of air when it arrives to selecting & utilizing blasting cabinets. Most blasting is functioned between 5 & 125 psi pressure. Only the necessary amount of pressure should be used; too high a setting may cause rapid breakdown of abrasive, without any significant increase in production.

The volume of compressed air a machine will consume is founded on the size of the air jet in a suction/ induction blast gun, & sand blasting nozzle in a pressure blast system. The quantity of compressed air, measured in CFM. at a distinct pressure, is what you ought to comprehend to determine a compressor. The more extensive  size of air jet/nozzle combination in a suction/induction blast gun, & the larger nozzle in a pressure blast system, the more production you will acquire, & the larger size of the air compressor you will demand.

Air Compressor Size For Sand Blasting

The CFM & PSI are two of the most significant factors to contemplate when choosing an air compressor for a sand blasting machine.

PSI

A sandblaster demands an air compressor accompanied by a pressure of 90-100 PSI to operate efficiently. PSI (pounds per square inch) is required to pressure effected by the compressor system.

The air tank will empty while you sand blasting machine, so keep the PSI between 50 & 90. If it falls under 50 PSI, pressure will be insufficient to terminate material, & you will maintain to stay for air compressor to come to again.

CFM

Sand blasting is an extremely hard technique. Sand blasting air compressor accompanied by a greater CFM (cubic feet per minute) rating is more suited for sand blasting. CFM is the volume of air certain the system could drive in a minute.

For a strong sand blasting experience, you'll need a compressor certain could deliver 18 to 35 CFM. Industrial sand blasting is significantly more challenging, mandating compressors accompanied by capacities ranging from 50-100 CFM.

When choosing a compressor, consider the CFM (cubic feet of air per minute) output. Extensive CFM compressors will furnish adequate air reserve to and also the blast vessel & the machinist's safeness air-supplied sand blasting helmet.

To provide you an opinion of what CFM a blasting machine will demand is an intermediate CFM rating for standard air mechanisms below:

140 CFM: A 140 CFM compressor is a minimum CFM compressor certain ought to be utilized since their cleaning rate accompanied by a blast machine is rather sluggish; hence, a compressor less than this value could be preliminary. This size compressor is appropriate for a user who needs agility & enough air reserve for modest to medium-sized jobs.

180 CFM: Compressors of this size are perfect for blasting because they deliver flexibility & a pleasant supply of free air. This size compressor is suitable for medium-scale blasting jobs like automobile shells, tractors, & trailers.

260 CFM: This famous compressor is better than suitable for an abrasive blasting machine business because it could easily handle modest to large-scale tasks. Compressors of this size can handle lengthy hoses accompanied by little power loss.

350-500 CFM: This kind of compressor is utilized for large-scale projects certain mandate an elevated cleaning rate, like steelwork, ship hulls, trains, & concrete residential complexes.
